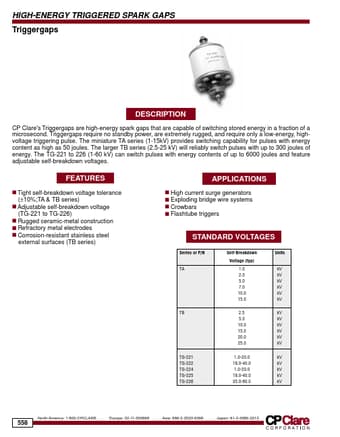

TG-222 HIGH-ENERGY TRIGGERED SPARK GAPS

CP Clare's Triggergaps are high-energy spark gaps that are capable of switching stored energy in a fraction of a microsecond. Triggergaps require no standby power, are extremely rugged, and require only a low-energy, highvoltage triggering pulse. The miniature TA series (1-15kV) provides switching c.

TG-222 Features

* s Tight self-breakdown voltage tolerance APPLICATIONS s s s s (±10%;TA & TB series) s Adjustable self-breakdown voltage (TG-221 to TG-226) s Rugged ceramic-metal construction s Refractory metal electrodes s Corrosion-resistant stainless steel external surfaces (TB series) High current surge gener
