TG-50

HIGH ENERGY SPARK GAP DEVICES

TG-50 Features

* s Tight DC breakdown voltage tolerance (± 10%) s Long-life tungsten or molybdenum electrodes s Rugged ceramic-to-metal or glass-to-metal s s s s APPLICATIONS Test equipment Video displays Pulse generators Medical electronics construction VOLTAGE RANGES Series DC Breakdown Voltage TG Two Electrode

TG-50 General Description

CP Clare’s TG Legacy Series of two electrode sparkgaps excel in applications that require the efficient transfer of high voltage, high energy pulses and DC overvoltage protection for magnetrons, diodes, capacitors, etc. The TG Legacy Series also includes three electrode triggered sparkgaps (cold cat.

TG-50 Datasheet (195.00 KB)

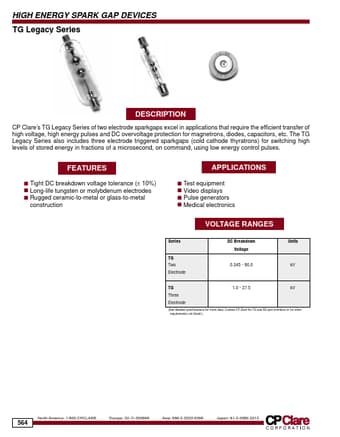

Preview of TG-50 PDF

Datasheet Details

Part number:

TG-50

Manufacturer:

Clare Inc

File Size:

195.00 KB

Description:

High energy spark gap devices.
