CPC7556

Diode Bridge

CPC7556 Features

* Monolithic Construction

* Surface Mount Package Applications

* Telecommunications Protection Clamp

* High Voltage Multiplexer/Switch

* High Voltage ESD Clamp Pb RoHS 2002/95/EC e3 CPC7556N Diagram A/B B/A CPC7556 Diode Bridge with Integrated Adjustable

CPC7556 General Description

100V Diode Bridge with an integrated Over-Voltage Protection (OVP) thyristor uses Clare's High Voltage SOI technology. The CPC7556N integrated diode bridge offers protection from high voltage transients by means of an adjustable voltage clamp. The clamp performs two actions, first to limit the volta.

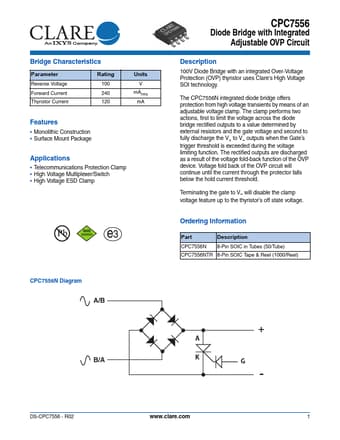

CPC7556 Datasheet (322.23 KB)

Preview of CPC7556 PDF

Datasheet Details

Part number:

CPC7556

Manufacturer:

Clare

File Size:

322.23 KB

Description:

Diode bridge.
