PS-237 Datasheet - Clare

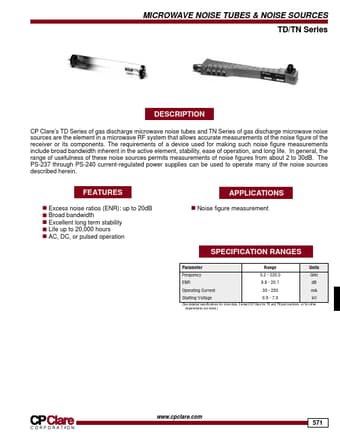

PS-237 MICROWAVE NOISE TUBES & NOISE SOURCES

CP Clare’s TD Series of gas discharge microwave noise tubes and TN Series of gas discharge microwave noise sources are the element in a microwave RF system that allows accurate measurements of the noise figure of the receiver or its components. The requirements of a device used for making such noise.

PS-237 Features

* s s s s s APPLICATIONS s Noise figure measurement Excess noise ratios (ENR): up to 20dB Broad bandwidth Excellent long term stability Life up to 20,000 hours AC, DC, or pulsed operation SPECIFICATION RANGES Parameter Frequency ENR Operating Current Starting Voltage Range 0.2 - 220.0 8.8 - 20.1 30
