UM2S1020 Ultra-Mini Dyad

UM2S1020 Description

Ultra-Mini Dyad™ UM2 .
Clare’s Ultra-Mini DyadTM is well suited for small, signal switching applications.

UM2S1020 Features

* Small size Easily surface mountable
* Hermetically sealed

UM2S1020 Applications

* The small size lends itself to surface mountable applications; working well on higher density PC boards. The Ultra-Mini DyadTM has sputtered ruthenium contacts and an extraordinary seal strength achieved by a patented laser sealing of the leads. In low level or dry switching environments, switches

📥 Download Datasheet

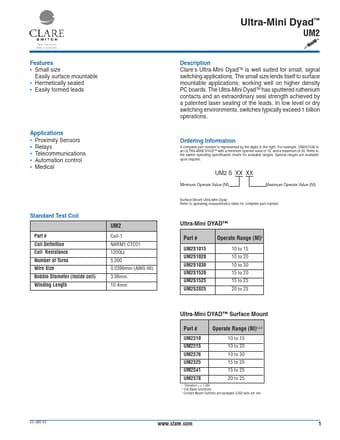

Preview of UM2S1020 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UM2S1020
Manufacturer
Clare
File Size
338.00 KB
Datasheet
UM2S1020_ClareInc..pdf
Description
Ultra-Mini Dyad
