MS21047 Datasheet - Coast Fabrication

MS21047 (MS21047 / MS21055) Nutplate

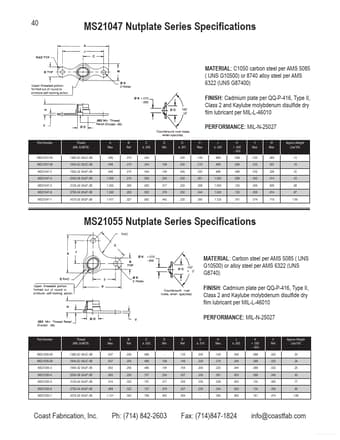

40 MS21047 Nutplate Series Specifications MATERIAL: C1050 carbon steel per AMS 5085 ( UNS G10500) or 8740 alloy steel per AMS 6322 (UNS G87400) FINISH: Cadmium plate per QQ-P-416, Type II, Class 2 and Kaylube molybdenum disulfide dry film lubricant per MIL-L-46010 PERFORMANCE: MIL-N-25027 Part Number Thread (MIL-S-8879) .1380-32 UNJC-3B .1640-32 UNJC-3B .1900-32 UNJF-3B .2500-28 UNJF-3B .3125-24 UNJF-3B .3750-24 UNJF-3B .4375-20 UNJF-3B A Max .948 .948 .948 1.260 1.292 1.292 1.477 B Ref .215 ..

MS21047 Datasheet (296.81 KB)

MS21047 Datasheet Preview — Preview of MS21047 PDF

Datasheet Details

Part number:

MS21047

Manufacturer:

Coast Fabrication

File Size:

296.81 KB

Description:

(ms21047 / ms21055) nutplate.
