MS21071-5 Datasheet - Coast Fabrication

MS21071-5 MS21071 Nutplate Series

42 MS21069 Nutplate Series Specifications MATERIAL: C1050 carbon steel per AMS 5085 (UNS G10500) FINISH: Cadmium plate per QQ-P-416, Type II, Class 2 and Kaylube molybdenum disulfide dry lubricant per MIL-L-46010 PERFORMANCE: MIL-N-25027 Part Number T Thread .086-56 UNJC-3B .099-48 UNJC-3B .112-40 UNJC-3B .138-32 UNJC-3B .164-32 UNJC-3B .190-32 UNJF-3B .250-28 UNJF-3B .3125-24 UNJF-3B .375-24 UNJF-3B A Max .410 .425 .630 .661 .692 .724 .786 1.006 1.116 B Max .162 .184 .260 .265 .297 .328 .4.

MS21071-5 Datasheet (157.53 KB)

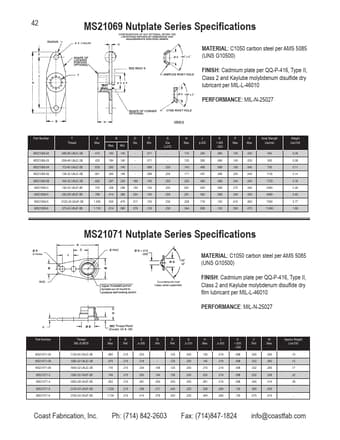

Preview of MS21071-5 PDF

Datasheet Details

Part number:

MS21071-5

Manufacturer:

Coast Fabrication

File Size:

157.53 KB

Description:

Ms21071 nutplate series.
