NAS1307, NAS1303 Datasheet - Coast Fabrication

NAS1307 (NAS1303 / NAS1316) Bolt

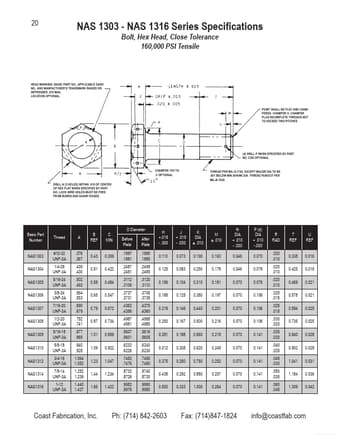

20 NAS 1303 - NAS 1316 Series Specifications Bolt, Hex Head, Close Tolerance 160,000 PSI Tensile HEAD MARKING: BASIC PART NO., APPLICABLE DASH NO., AND MANFACTURER’S TRADEMARK RAISED OR DEPRESSED .010 MAX. LOCATION OPTIONAL POINT SHALL BE FLAT AND CHAMFERED. CHAMFER U. CHAMFER PLUS INCOMPLETE THREADS NOT TO EXCEED TWO PITCHES (d) DRILL P WHEN SPECIFIED BY PART NO, CSK OPTIONAL CHAMFER 15O TO C OPTIONAL DRILL N (3 HOLES) WITHIN .010 OF CENTER OF HEX FLAT WHEN SPECIFIED BY PART NO. LOCK WIRE H.

NAS1303_CoastFabrication.pdf

NAS1307 Datasheet Preview — This datasheet PDF includes multiple part numbers: NAS1307, NAS1303. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NAS1307, NAS1303

Manufacturer:

Coast Fabrication

File Size:

531.37 KB

Description:

(nas1303 / nas1316) bolt.

Note:

This datasheet PDF includes multiple part numbers: NAS1307, NAS1303.
Please refer to the document for exact specifications by model.
