0402DF-360XJR

Chip Inductors

Coilcraft

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Coilcraft Inc	0402DF-360XJRW	FIXED IND 36NH 1.3A 55 MOHM SMD	DigiKey	532	500 units	$0.89	🛒 Buy Now

Download Datasheet (347.40 KB)

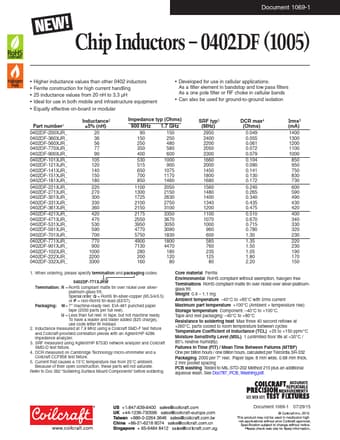

0402DF-360XJR Datasheet Preview — Preview of 0402DF-360XJR Datasheet

Datasheet Details

Part number:

0402DF-360XJR

Manufacturer:

Coilcraft

File Size:

347.40 KB

Description:

Chip inductors.
Document 1069-1 Chip Inductors * 0402DF (1005) * Higher inductance values than other 0402 inductor.
s * Ferrite construction for high current handling * 25 inductance values from 20 nH to 3.3 µH * .

✔ 0402DF-360XJR Application

As a filter element in bandstop and low pass filters As a one pole filter or RF choke in cellular bands
