0402HP-23NX, 0402HP Datasheet - Coilcraft

0402HP-23NX Chip Inductors

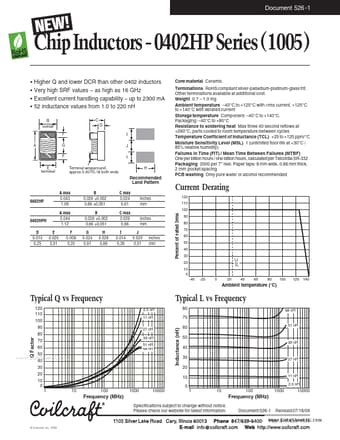

Document 526 -1 Chip Inductors - 0402HP Series (1005) Higher Q and lower DCR than other 0402 inductors Very high SRF values as high as 16 GHz Excellent current handling capability up to 2300 mA 52 inductance values from 1.0 to 220 nH B overall F A G F E terminal Terminal wraparound: approx 0.007/0,18 both ends C D I J I H Core material Ceramic Terminations RoHS compliant silver-palladium-platinum-glass frit. Other terminations availab.

0402HP_Coilcraft.pdf

0402HP-23NX Datasheet Preview — This datasheet PDF includes multiple part numbers: 0402HP-23NX, 0402HP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

0402HP-23NX, 0402HP

Manufacturer:

Coilcraft

File Size:

249.31 KB

Description:

Chip inductors.

Note:

This datasheet PDF includes multiple part numbers: 0402HP-23NX, 0402HP.
Please refer to the document for exact specifications by model.
