0402HP-5N6X Chip Inductors

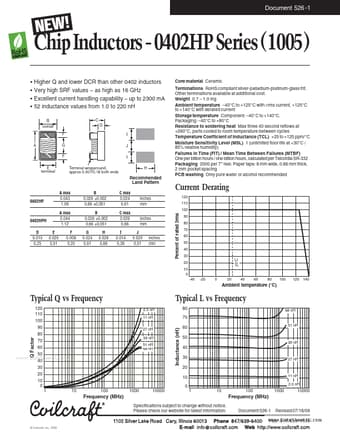

Document 526 -1 Chip Inductors - 0402HP Series (1005) Higher Q and lower DCR than other 0402 inductors Very high SRF values as high as 16 GHz Excellent current handling capability up to 2300 mA 52 inductance values from 1.0 to 220 nH B overall F A G F E terminal Terminal wraparound: approx 0.007/0,18 both ends C D I J I H Core material Ceramic Terminations RoHS compliant silver-palladium-platinum-glass frit. Other terminations availab.

0402HP-5N6X Datasheet (249.31 KB)
