0603HL-391XJRC Chip Inductors

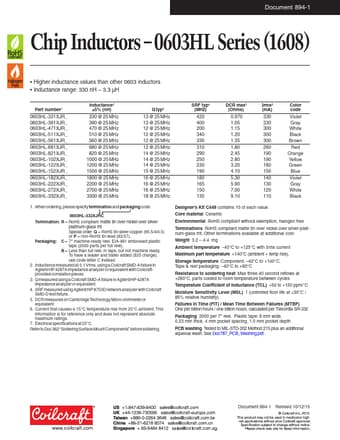

Document 894-1 Chip Inductors 0603HL Series (1608) Higher inductance values than other 0603 inductors Inductance range: 330 nH 3.3 µH Part number1 Inductance2 ±5% (nH) 0603HL-331XJR_ 330 @ 25 MHz 0603HL-391XJR_ 390 @ 25 MHz 0603HL-471XJR_ 470 @ 25 MHz 0603HL-511XJR_ 510 @ 25 MHz 0603HL-561XJR_ 560 @ 25 MHz 0603HL-681XJR_ 680 @ 25 MHz 0603HL-821XJR_ 820 @ 25 MHz 0603HL-102XJR_ 1000 @ 25 MHz 0603HL-122XJR_ 1200 @ 25 .

0603HL-391XJRC Datasheet (343.39 KB)
