0603USB-222MLD, 0603 Datasheet - Coilcraft

0603USB-222MLD, 0603, USB 3.0 Common Mode Choke

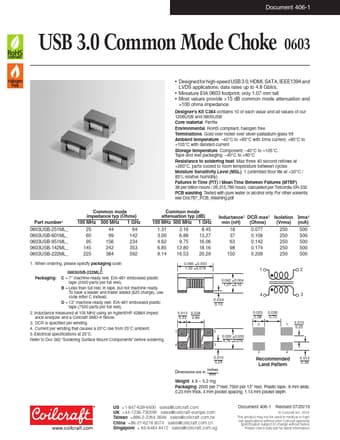

Document 406-1 USB 3.0 Common Mode Choke 0603 * Designed for high-speed USB 3.0, HDMI, SATA, IEEE1394 and LVDS applications; data rates up t.

datasheet Preview Page 1 from Datasheet4u.com

0603-Coilcraft.pdf

0603USB-222MLD Datasheet Preview — This datasheet PDF includes multiple part numbers: 0603USB-222MLD, 0603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

0603USB-222MLD, 0603

Manufacturer:

Coilcraft

File Size:

153.73 KB

Description:

USB 3.0 Common Mode Choke

Note:

This datasheet PDF includes multiple part numbers: 0603USB-222MLD, 0603.
Please refer to the document for exact specifications by model.

Applications

* data rates up to 4.8 Gbit/s.
* Miniature EIA 0603 footprint; only 1.07 mm tall
* Most values provide >15 dB common mode attenuation and >100 ohms impedance. Designer’s Kit C384 contains 10 of each value and all values of our 1206USB and 0805USB Core material Ferrite Environmental
