0805AF-103XJRB Ferrite Chip Inductors

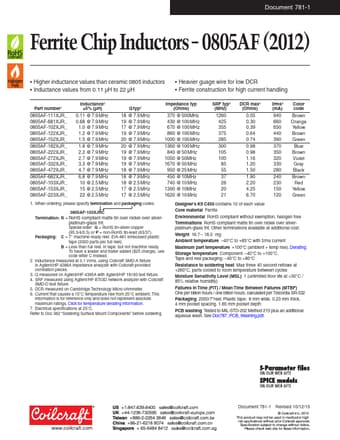

Document 781-1 FerriteChipInductors 0805AF (2012) Higher inductance values than ceramic 0805 inductors Inductance values from 0.11 µH to 22 µH Heavier guage wire for low DCR Ferrite construction for high current handling Inductance2 Part number1 ±5% (µH) Q typ3 0805AF-111XJR_ 0.11 @ 7.9 MHz 18 @ 7.9 MHz 0805AF-681XJR_ 0.68 @ 7.9 MHz 0805AF-102XJR_ 1.0 @ 7.9 MHz 19 @ 7.9 MHz 17 @ 7.9 MHz 0805AF-122XJR_ 0805AF-1.

0805AF-Coilcraft.pdf

0805AF-103XJRB Datasheet Preview — This datasheet PDF includes multiple part numbers: 0805AF-103XJRB, 0805AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

0805AF-103XJRB, 0805AF

Manufacturer:

Coilcraft

File Size:

345.16 KB

Description:

Ferrite chip inductors.

Note:

This datasheet PDF includes multiple part numbers: 0805AF-103XJRB, 0805AF.
Please refer to the document for exact specifications by model.
