0805CS-080X (0805CS Series) Chip Inductors

Document 100-1 www.DataSheet4U.com ChipInductors 0805CSSeries(2012) These ultra-compact inductors provide exceptional Q values, even at high frequencies. They have a ceramic body and wire wound construction to provide the highest SRFs available in 0805 size. Part number 1 Coilcraft Designer’s Kit C103 contains samples of all 5% inductance tolerance parts. Kits with 2% tolerance are also available. To order, contact Coilcraft. Q min 4 Inductance2 (nH) 2.8 @ 250 MHz 3.0 @ 250 MHz 3.3 @ .

0805CS-080X Datasheet (144.45 KB)

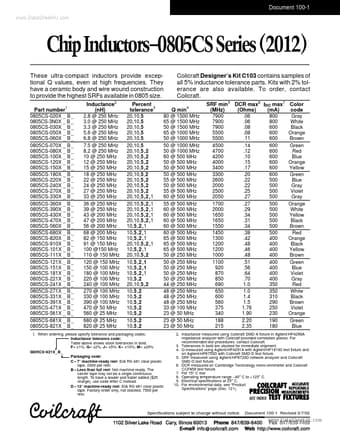

0805CS-080X Datasheet Preview — Preview of 0805CS-080X PDF

Datasheet Details

Part number:

0805CS-080X

Manufacturer:

Coilcraft

File Size:

144.45 KB

Description:

(0805cs series) chip inductors.
