150-02J08L, 150-01J08L Datasheet - Coilcraft

150-02J08L 7mm Tunable RF Coils

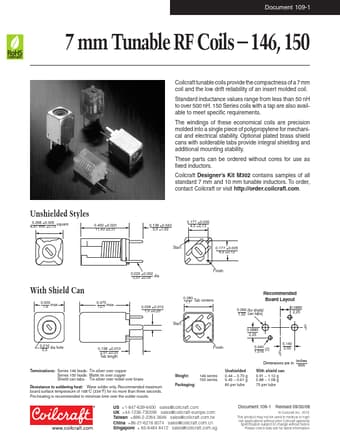

Document 109-1 7 mm Tunable RF Coils 146, 150 Coilcraft tunable coils provide the compactness of a 7 mm coil and the low drift reliability of an insert molded coil. Standard inductance values range from less than 50 nH to over 500 nH. 150 Series coils with a tap are also available to meet specific requirements. The windings of these economical coils are precision molded into a single piece of polypropylene for mechanical and electrical stability. Optional plated brass shield cans with.

150-01J08L-Coilcraft.pdf

150-02J08L Datasheet Preview — This datasheet PDF includes multiple part numbers: 150-02J08L, 150-01J08L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

150-02J08L, 150-01J08L

Manufacturer:

Coilcraft

File Size:

219.75 KB

Description:

7mm tunable rf coils.

Note:

This datasheet PDF includes multiple part numbers: 150-02J08L, 150-01J08L.
Please refer to the document for exact specifications by model.
