A05T Mini Spring Air Core Inductors

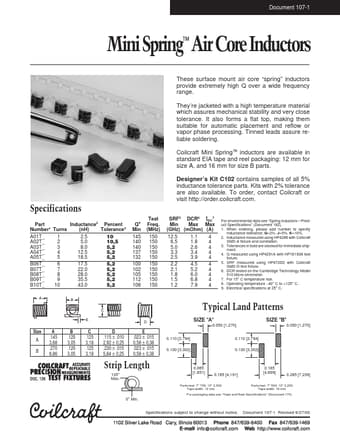

Document 107-1 MiniSpring™ AirCoreInductors These surface mount air core “spring” inductors provide extremely high Q over a wide frequency range. They’re jacketed with a high temperature material which assures mechanical stability and very close tolerance. It also forms a flat top, making them suitable for automatic placement and reflow or vapor phase processing. Tinned leads assure reliable soldering. Coilcraft Mini Spring™ inductors are available in standard EIA tape and reel packaging: 12 mm.
