CST4835 Current Sense Transformers

Document 915-1 Current Sense Transformers CST4835 AEC-Q200 Grade 1 qualified ( 40°C to +125°C ambient) Miniature SMT design, only 4.5 × 4.8 mm footprint 500 Vrms, one minute isolation (hipot) between windings Designed for use up to 1 MHz to sense continuous currents to 7 Amps Core material Ferrite Environmental RoHS compliant, halogen free Terminations RoHS compliant silver over nickel over phos bronze. Weight 115 122 mg Ambient te.

CST4835 Datasheet (229.65 KB)

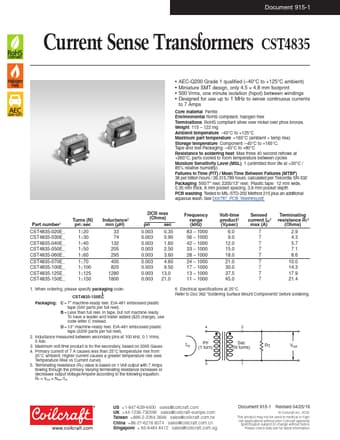

CST4835 Datasheet Preview — Preview of CST4835 PDF

Datasheet Details

Part number:

CST4835

Manufacturer:

Coilcraft

File Size:

229.65 KB

Description:

Current sense transformers.
