DC1012-823L, DC1012 Datasheet - Coilcraft

DC1012-823L Power Inductors

Document 147 -1 Power Inductors DC1012 Series These power inductors are especially effective as DC-DC converter boost or buck inductors and as output ripple filter chokes in all types of switching power supplies. They are ideal for applications through hole, cost effective power inductors. The vertical style helps to save printed circuit board area.The large inductance available per size makes these parts ideal for all sorts of energy storage, smoothing, and EMI reduction applications.

DC1012-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: DC1012-823L, DC1012. Please refer to the document for exact specifications by model.

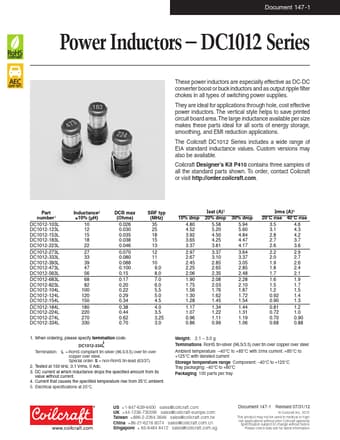

DC1012-823L Datasheet Preview Page 2

Datasheet Details

Part number:

DC1012-823L, DC1012

Manufacturer:

Coilcraft

File Size:

192.95 KB

Description:

Power inductors.

Note:

This datasheet PDF includes multiple part numbers: DC1012-823L, DC1012.
Please refer to the document for exact specifications by model.
