DO1605T-154MLD Datasheet - Coilcraft

DO1605T-154MLD SMT Power Inductors

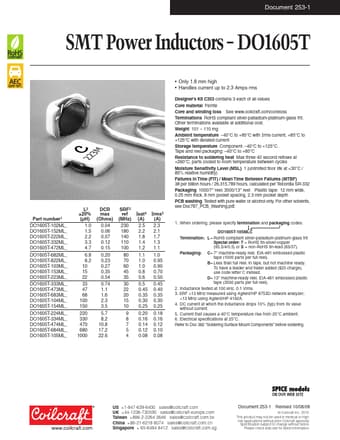

Document 253-1 SMT Power Inductors DO1605T 1Part number1 1L2 DCR SRF3 ±20% max ref Isat4 Irms5 (µH) (Ohms) (MHz) (A) (A) DO1605T-102ML_ DO1605T-152ML_ DO1605T-222ML_ DO1605T-332ML_ DO1605T-472ML_ 1.0 0.04 230 2.5 2.3 1.5 0.06 180 2.2 2.1 2.2 0.07 140 1.8 1.7 3.3 0.12 110 1.4 1.3 4.7 0.15 100 1.2 1.1 DO1605T-682ML_ DO1605T-822ML_ DO1605T-103ML_ DO1605T-153ML_ DO1605T-223ML_ 6.8 0.20 8.2 0.23 10 0.27 15 0.35 22 0.54 80 1.1 1.0.

DO1605T-154MLD Datasheet (230.47 KB)
