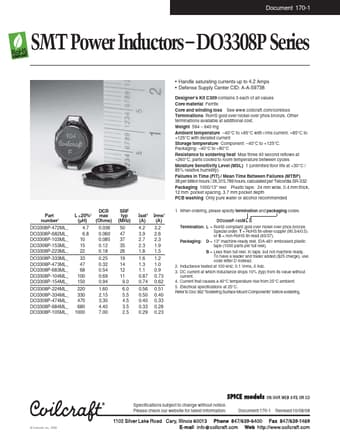

Document 170-1
SMT Power Inductors – DO3308P Series
• Handle saturating currents up to 4.2 Amps • Defense Supply Center CID: A-A-59738
Designer’s Kit C309 contains 3 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS gold over nickel over phos bronze. Other terminations available at additional cost. Weight 594 – 640 mg Ambient temperature –40°C to +85°C with Irms current, +85°C to +125°C with derated current Storage temperature Component: –40°C to +125°C.
DO3308P Datasheet
