DO3314-102MLB SMT Power Inductors

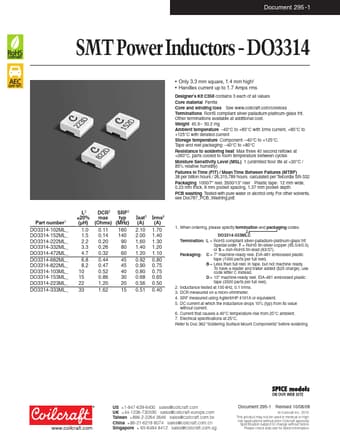

Document 295 -1 SMTPowerInductors-DO3314 Only 3.3 mm square, 1.4 mm high! Handles current up to 1.7 Amps rms Designer’s Kit C358 contains 3 each of all values Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant silver-palladium-platinum-glass frit. Other terminations available at additional cost. Weight 45.9 50.2 mg Ambient temperature 40°C to +85°C with Irms current, +85°C to +125°C with derated cur.
