DO5022P-224MLD SMT Power Inductors

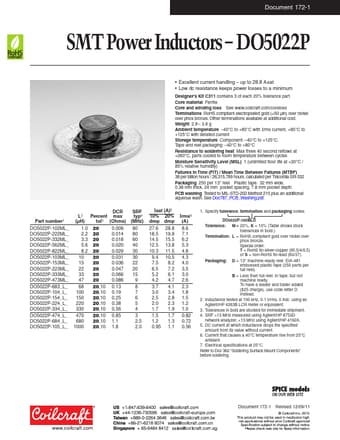

Document 172-1 SMT Power Inductors DO5022P Excellent current handling up to 28.8 Asat. Low dc resistance keeps power losses to a minimum Designer’s Kit C311 contains 3 of each 20% tolerance part Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant electroplated gold (<50 µin) over nickel over phos bronze. Other terminations available at additional cost. Weight 2.8 3.9 g Ambient temperature .

DO5022P-224MLD Datasheet (505.94 KB)
