GA3094-AL High-Current Air Core Inductors

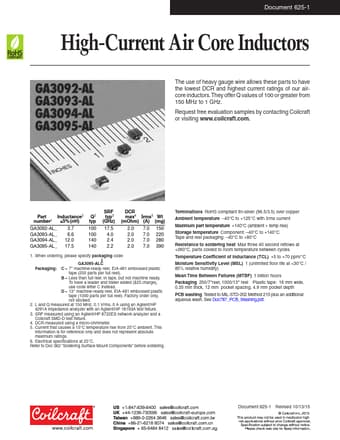

Document 625-1 High-Current Air Core Inductors The use of heavy gauge wire allows these parts to have the lowest DCR and highest current ratings of our aircore inductors.They offer Q values of 100 or greater from 150 MHz to 1 GHz. Request free evaluation samples by contacting Coilcraft or visiting www.coilcraft.com. SRF DCR Part Inductance2 Q2 typ3 max4 Irms5 Wt number1 ±5% (nH) typ (GHz) (mOhm) (A) (mg) GA3092-AL_ 3.7 GA3093-AL_ 6.6 GA3094-AL_ 12.0 GA309.

GA3092-AL-Coilcraft.pdf

GA3094-AL Datasheet Preview — This datasheet PDF includes multiple part numbers: GA3094-AL, GA3092-AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GA3094-AL, GA3092-AL

Manufacturer:

Coilcraft

File Size:

490.85 KB

Description:

High-current air core inductors.

Note:

This datasheet PDF includes multiple part numbers: GA3094-AL, GA3092-AL.
Please refer to the document for exact specifications by model.
