GA3416-CL Datasheet - Coilcraft

GA3416-CL Dual Inductor

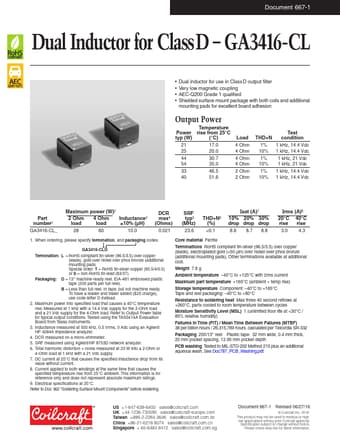

Document 667-1 Dual Inductor for Class D GA3416-CL Dual inductor for use in Class D output filter Very low magnetic coupling AEC-Q200 Grade 1 qualified Shielded surface mount package with both coils and additional mounting pads for excellent board adhesion Output Power Temperature Power rise from 25°C typ (W) (°C) Load THD+N Test condition 21 25 17.0 20.0 4 Ohm 1% 1 kHz, 14.4 Vdc 4 Ohm 10% 1 kHz, 14.4 V.

GA3416-CL-Coilcraft.pdf

Preview of GA3416-CL PDF
GA3416-CL Datasheet Preview Page 2

Datasheet Details

Part number:

GA3416-CL

Manufacturer:

Coilcraft

File Size:

150.06 KB

Description:

Dual inductor.
