GA3562-BL Datasheet - Coilcraft

GA3562-BL Flyback Transformers

Document 439 Flyback Transformers ForTexas Instruments TPS23750 PoE Powered Device Controller Isolated synchronous flyback transformers developed forTexas Instruments PMP929 reference design. Operates up to 500 kHz with 18 72 V input 1500 Vrms, one minute isolation primary and bias to secondary Core material Ferrite Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 5.

GA3562-BL-Coilcraft.pdf

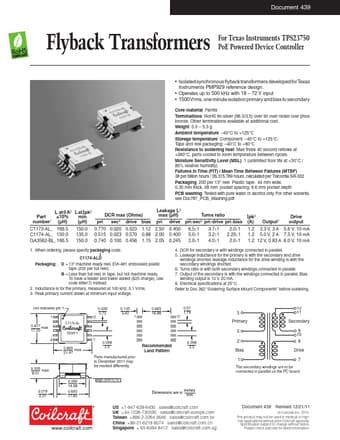

GA3562-BL Datasheet Preview — Preview of GA3562-BL PDF

Datasheet Details

Part number:

GA3562-BL

Manufacturer:

Coilcraft

File Size:

111.80 KB

Description:

Flyback transformers.
