HA3586-BL, HA3585-BL FlybackTransformers

HA3586-BL Description

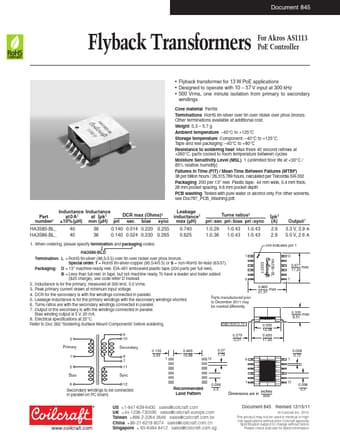

Document 845 Flyback Transformers ForAkrosAS1113 PoE Controller * Flyback transformer for 13 W PoE applications * Designed to opera.

HA3586-BL Applications

* Designed to operate with 10
* 57 V input at 300 kHz
* 500 Vrms, one minute isolation from primary to secondary windings Core material Ferrite Terminations  RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost. Weight  5.3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HA3586-BL, HA3585-BL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
HA3586-BL, HA3585-BL
Manufacturer
Coilcraft
File Size
100.57 KB
Datasheet
HA3585-BL-Coilcraft.pdf
Description
FlybackTransformers
Note
This datasheet PDF includes multiple part numbers: HA3586-BL, HA3585-BL.
Please refer to the document for exact specifications by model.
