HP2-0116L, HP2-1600L Datasheet - Coilcraft

HP2-0116L Hexa-Path Magnetics

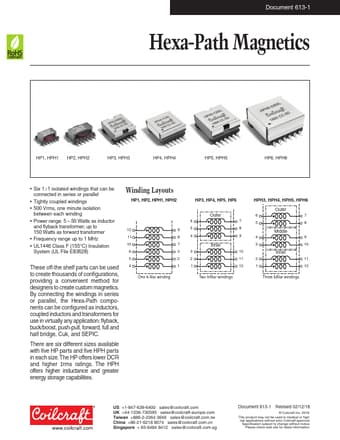

Document 613-1 Hexa-Path Magnetics HP1, HPH1 HP2, HPH2 HP3, HPH3 HP4, HPH4 HP5, HPH5 HP6, HPH6 Six 1 : 1 isolated windings that can be connected in series or parallel Tightly coupled windings 500 Vrms, one minute isolation between each winding Power range: 5 50 Watts as inductor and flyback transformer; up to 150 Watts as forward transformer Frequency range up to 1 MHz UL1446 Class F (155°C) Insulation System (UL F.

HP2-1600L-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: HP2-0116L, HP2-1600L. Please refer to the document for exact specifications by model.
HP2-0116L Datasheet Preview Page 2 HP2-0116L Datasheet Preview Page 3

Datasheet Details

Part number:

HP2-0116L, HP2-1600L

Manufacturer:

Coilcraft

File Size:

382.06 KB

Description:

Hexa-path magnetics.

Note:

This datasheet PDF includes multiple part numbers: HP2-0116L, HP2-1600L.
Please refer to the document for exact specifications by model.
