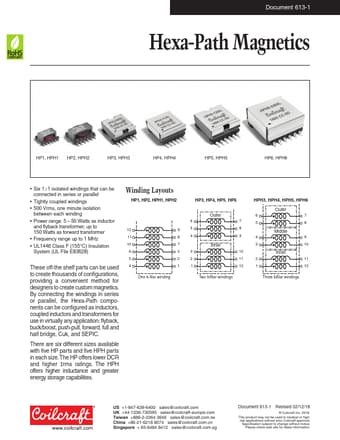

Document 613-1 Hexa-Path Magnetics HP1, HPH1 HP2, HPH2 HP3, HPH3 HP4, HPH4 HP5, HPH5 HP6, HPH6 • Six 1 : 1 isolated windings that can be connected in series or parallel •...
View more extracted text
1 : 1 isolated windings that can be connected in series or parallel • Tightly coupled windings • 500 Vrms, one minute isolation between each winding • Power range: 5 – 50 Watts as inductor and flyback transformer; up to 150 Watts as forward transformer • Frequency range up to 1 MHz • UL1446 Class F (155°C) Insulation System (UL File E83628) These off-the shelf parts can be used to create thousands of configurations, providing a convenient method for designers to create custom magnetics.
