KA4947-AE Flyback Transformer

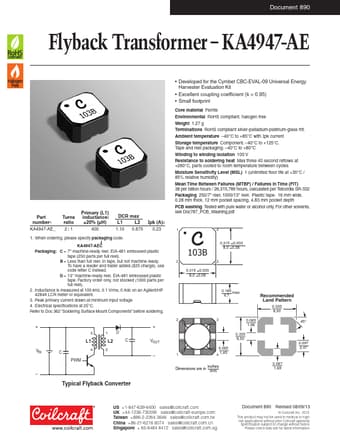

Document 890 Flyback Transformer KA4947-AE Primary (L1) Part Turns inductance2 number1 ratio ±20% (µH) KA4947-AE_ 2 : 1 400 DCR max L1 L2 Ipk (A)3 1.10 0.875 0.23 1. When ordering, please specify packaging code: KA4947-AEC Packaging: C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead. D = 13.

KA4947-AE-Coilcraft.pdf

KA4947-AE Datasheet Preview — Preview of KA4947-AE PDF

Datasheet Details

Part number:

KA4947-AE

Manufacturer:

Coilcraft

File Size:

132.00 KB

Description:

Flyback transformer.
