LCVDSL-101 xDSL Filter Modules

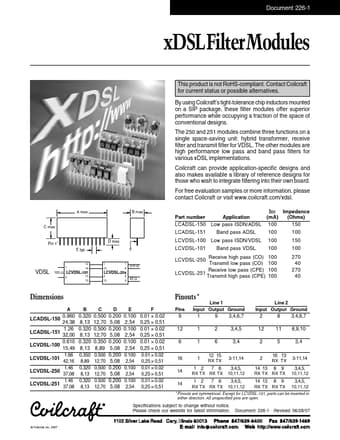

Document 226-1 xDSLFilterModules This product is not RoHS-compliant. Contact Coilcraft for current status or possible alternatives. By using Coilcraft’s tight-tolerance chip inductors mounted on a SIP package, these filter modules offer superior performance while occupying a fraction of the space of conventional designs. The 250 and 251 modules combine three functions on a single space-saving unit: hybrid transformer, receive filter and transmit filter for VDSL. The other modules are high perfo.

LCADSL-150-Coilcraft.pdf

LCVDSL-101 Datasheet Preview — This datasheet PDF includes multiple part numbers: LCVDSL-101, LCADSL-150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LCVDSL-101, LCADSL-150

Manufacturer:

Coilcraft

File Size:

150.20 KB

Description:

Xdsl filter modules.

Note:

This datasheet PDF includes multiple part numbers: LCVDSL-101, LCADSL-150.
Please refer to the document for exact specifications by model.
