LPS8045B-103MR, LPS8045 Datasheet - Coilcraft

LPS8045B-103MR Shielded Power Inductors

Document 968-1 Shielded PowerInductors LPS8045 Inductance values from 6.8 to 1000 ”H Low DCR; excellent current handling Core material Ferrite Weight  0.88 1.1 g Environmental  RoHS compliant, halogen free Terminations  RoHS compliant matte tin over nickel over silver. Other terminations available at additional cost. Ambient temperature  40°C to +85°C with (40°C rise) Irms current. Maximum part temperature  +125°C (ambient + temp rise). Deratin.

LPS8045-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: LPS8045B-103MR, LPS8045. Please refer to the document for exact specifications by model.

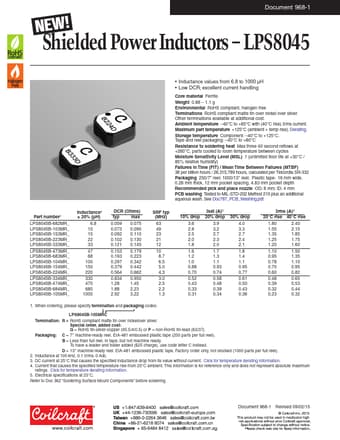

LPS8045B-103MR Datasheet Preview Page 2

Datasheet Details

Part number:

LPS8045B-103MR, LPS8045

Manufacturer:

Coilcraft

File Size:

405.34 KB

Description:

Shielded power inductors.

Note:

This datasheet PDF includes multiple part numbers: LPS8045B-103MR, LPS8045.
Please refer to the document for exact specifications by model.
