MSS5131-222MLC Shielded Power Inductors

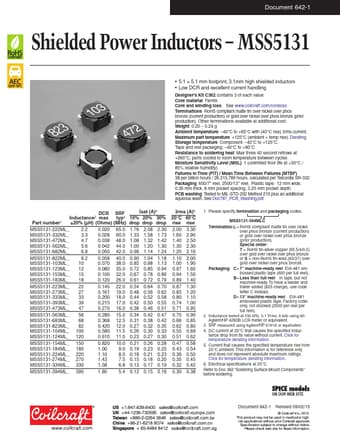

Document 642-1 Shielded Power Inductors MSS5131 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors Low DCR and excellent current handling Designer’s Kit C362 contains 3 of each value Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production). Other terminations available at additional cost. Weight 0.2.
