RFB1010, RFB0807 Datasheet - Coilcraft

RFB1010 Power Inductors

Document 277A-1 Power Inductors RFB Series RFB0807 RFB0810 Low cost, high current power inductors 0.9 µH to 18 mH inductance range RFB0810 and RFB1010 have a flame retardant polyolefin wrap to protect the winding. Core material Ferrite Terminations  Tin-silver over tin over copper over steel. Other terminations available at additional cost. Ambient temperature  40°C to +85°C with Irms current, +85°C to +125°C with derated current Storage tem.

RFB0807-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: RFB1010, RFB0807. Please refer to the document for exact specifications by model.

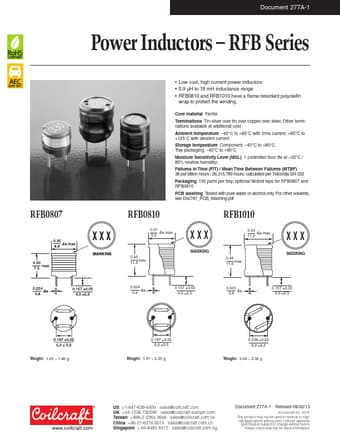

RFB1010 Datasheet Preview Page 2 RFB1010 Datasheet Preview Page 3

Datasheet Details

Part number:

RFB1010, RFB0807

Manufacturer:

Coilcraft

File Size:

246.11 KB

Description:

Power inductors.

Note:

This datasheet PDF includes multiple part numbers: RFB1010, RFB0807.
Please refer to the document for exact specifications by model.
