S5502-A CONVERTER TRANSFORMERS AND FILTER CHOKE

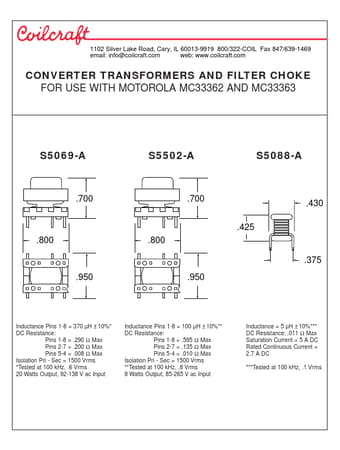

1102 Silver Lake Road, Cary, IL 60013-9919 800/322-COIL Fax 847/639-1469 email: info@coilcraft.com web: www.coilcraft.com CONVERTER TRANSFORMERS AND FILTER CHOKE FOR USE WITH MOTOROLA MC33362 AND MC33363 S5069-A .700 .800 .950 S5502-A S5088-A .700 .800 .950 .425 .430 .375 Inductance Pins 1-8 = 370 µH ± 10% DC Resistance: Pins 1-8 = .290 Ω Max Pins 2-7 = .200 Ω Max Pins 5-4 = .008 Ω Max Isolation Pri - Sec = 1500 Vrms Tested at 100 kHz, .6 Vrms 20 Watts Output, 92-138 V ac Inp.

S5502-A Datasheet (11.38 KB)

S5502-A Datasheet Preview — Preview of S5502-A PDF

Datasheet Details

Part number:

S5502-A

Manufacturer:

Coilcraft

File Size:

11.38 KB

Description:

Converter transformers and filter choke.
