SS1060-R17K-LF, SS1060 Datasheet - Coilmaster Electronics

SS1060-R17K-LF - Spring Air Core Inductors

SS1060-R17K-LF Features

* z SMD type air core inductor . z Tape / Reel packaging available for auto-insertion . z High Q coils . SS1060 Series unit : mm A=10.55 Max. B=6.6 Max C=5.74±0.08 D=5.97 Max. E=7.98±0.51 PART NUMBER INDUCTANCE (nH) Tolerance Q. (Min.) DCR (mΩ) SRF (GHz) (Max) (Min.) SS1060-90N

* -LF

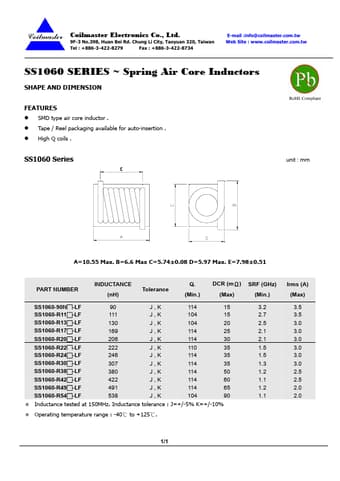

SS1060-CoilmasterElectronics.pdf

This datasheet PDF includes multiple part numbers: SS1060-R17K-LF, SS1060. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS1060-R17K-LF, SS1060

Manufacturer:

Coilmaster Electronics

File Size:

154.82 KB

Description:

Spring air core inductors.

Note:

This datasheet PDF includes multiple part numbers: SS1060-R17K-LF, SS1060.
Please refer to the document for exact specifications by model.
