1.5KE11-HF

1500W Transient Voltage Suppressor

1.5KE11-HF Datasheet (59.24 KB)

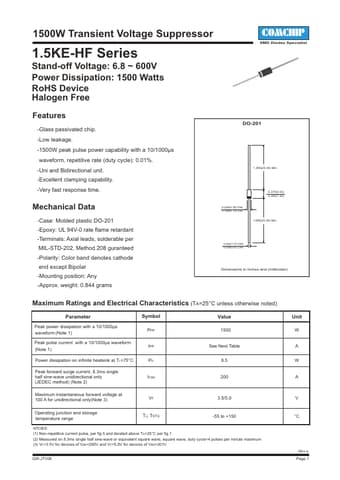

Preview of 1.5KE11-HF PDF Datasheet

Datasheet Details

Part number:

1.5KE11-HF

Manufacturer:

Comchip Technology

File Size:

59.24 KB

Description:

1500w transient voltage suppressor.
1500W Transient Voltage Suppressor 1.5KE-HF Series Stand-off Voltage: 6.8 ~ 600V Power Dissipation: 1500 Watts RoHS Device Halogen Free COMCHIP SMD D.

1.5KE11-HF Features

* -Glass passivated chip. -Low leakage. -1500W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01%. -Uni and Bidirectional unit. -Excellent clamping capability. -Very fast response time. Mechanical Data -Case: Molded plastic DO-201 -Epoxy: UL 94V-0 rate flame ret
