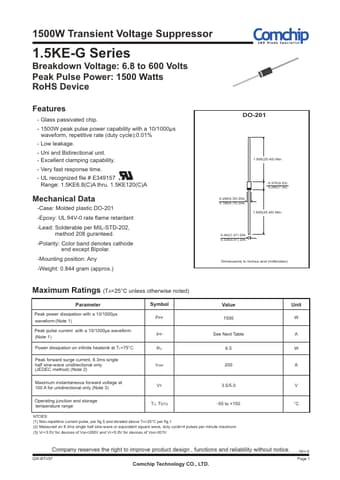

1.5KE7.5CA-G, 1.5KE6.8A-G - 1500W Transient Voltage Suppressor

Comchip Technology

Datasheet Details

Part number	1.5KE7.5CA-G, 1.5KE6.8A-G
Manufacturer	Comchip Technology
File Size	89.17 KB
Description	1500W Transient Voltage Suppressor
Datasheet	1.5KE6.8A-G-ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: 1.5KE7.5CA-G, 1.5KE6.8A-G. Please refer to the document for exact specifications by model.

- Glass passivated chip. - 1500W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: 1.5KE6.8(C)A thru. 1.5KE120(C)A Mechanical Data -Case: Molded plastic DO-201 -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipolar.
