CDBA240 SMD Schottky Barrier Rectifier

CDBA240 Description

SMD Schottky Barrier Rectifier COMCHIP www.comchip.com.tw CDBA220 Thru CDBA2100 Reverse Voltage: 20 - 100 Volts Forward Current: 2.0 Amp .

CDBA240 Applications

* Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Built-in strain relief Low forward voltage drop 0.067(1.70) 0.051(1.29) 0.180(4.57) 0.160(4.06) 0.110(2.79) 0.086(2.18) Mechanical Data 0.091(2.31) 0.067(1.70) 0.012(0.31) 0.006(0.15) Case: JEDEC DO-214A

📥 Download Datasheet

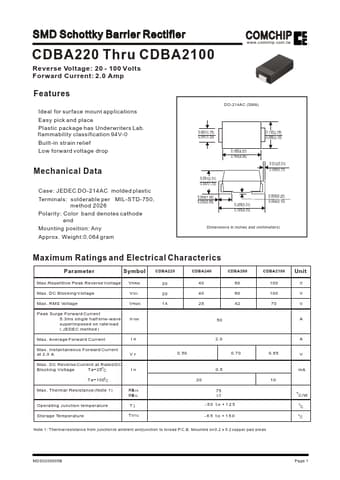

Preview of CDBA240 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CDBA240
Manufacturer
Comchip Technology
File Size
64.48 KB
Datasheet
CDBA240_ComchipTechnology.pdf
Description
SMD Schottky Barrier Rectifier
