CDBA240LL - SMD Schottky Barrier Rectifier

Datasheet Summary

Features

  • Ideal for surface mount.

📥 Download Datasheet

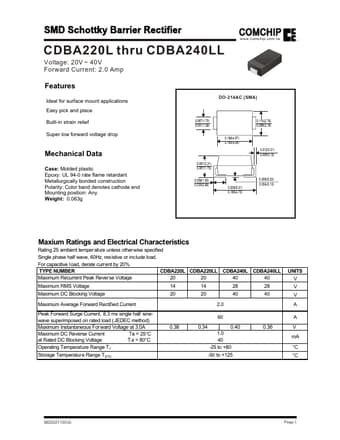

Datasheet preview – CDBA240LL

Datasheet Details

Part number CDBA240LL
Manufacturer Comchip Technology
File Size 138.21 KB
Description SMD Schottky Barrier Rectifier
Datasheet download datasheet CDBA240LL Datasheet
Additional preview pages of the CDBA240LL datasheet.

📁 Similar Datasheet

  • CDBA240LL-G - Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA240LL-HF - Ultra Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA240L-G - Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA240-G - SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA2100-G - SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA220-G - SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA220L-G - Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA220LL-G - Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA220LL-HF - Ultra Low VF SMD Schottky Barrier Rectifiers (Comchip)
  • CDBA230LL-HF - Ultra Low VF SMD Schottky Barrier Rectifiers (Comchip)
Other Datasheets by Comchip Technology
  • CDBA240L - SMD Schottky Barrier Rectifier
  • CDBA240 - SMD Schottky Barrier Rectifier
  • CDBA2100 - SMD Schottky Barrier Rectifier
  • CDBA220 - SMD Schottky Barrier Rectifier
  • CDBA220L - SMD Schottky Barrier Rectifier
  • CDBA220LL - SMD Schottky Barrier Rectifier
  • CDBA260 - SMD Schottky Barrier Rectifier
  • CDBA1100 - SMD Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text
SMD Schottky Barrier Rectifier COMCHIP www.comchip.com.tw CDBA220L thru CDBA240L L Voltage: 20V ~ 40V Forward Current: 2.0 Amp Features Ideal for surface mount applications Easy pick and place Built-in strain relief Super low forward voltage drop 0.067(1.70) 0.051(1.29) 0.180(4.57) 0.160(4.06) 0.012(0.31) 0.006(0.15) 0.091(2.31) 0.067(1.70) 0.059(1.50) 0.035(0.89) 0.008(0.20) 0.004(0.10) 0.110(2.79) 0.086(2.18) DO-214AC (SMA) Mechanical Data Case: Molded plastic Epoxy: UL 94-0 rate flame retardant Metallurgically bonded construction Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.063g 0.209(5.31) 0.185(4.
