CDBM120-HF

SMD Schottky Barrier Rectifiers

CDBM120-HF Features

* -Batch process design, excellent power dissipation offers better reverse leakage current and thermal resistance. -Low profile surface mounted application in order to optimize board space. -Tiny plastic SMD package. -Low power loss, high efficiency. -High current capability, low forward voltage dorp.

CDBM120-HF Datasheet (80.89 KB)

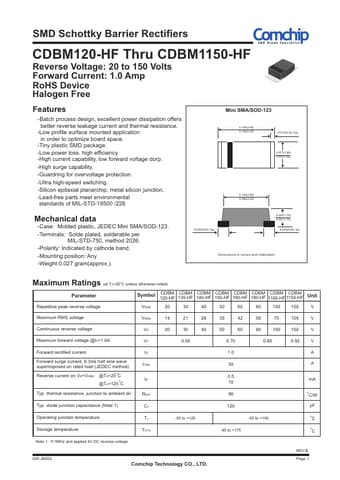

Preview of CDBM120-HF PDF

Datasheet Details

Part number:

CDBM120-HF

Manufacturer:

Comchip Technology

File Size:

80.89 KB

Description:

Smd schottky barrier rectifiers.
SMD Schottky Barrier Rectifiers CDBM120-HF Thru CDBM1150-HF Reverse Voltage: 20 to 150 Volts Forward Current: 1.0 Amp RoHS Device Halogen Free Featu.
