CDBU0330, CDBU0320 - (CDBU0320 - CDBU0340) SMD Schottky Barrier Diode

Name: CDBU0330
SKU: CDBU0330-590560

Comchip Technology

The CDBU0330 by Comchip Technology is a (CDBU0320 - CDBU0340) SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBU0330, CDBU0320
Manufacturer	Comchip Technology
File Size	100.97 KB
Description	(CDBU0320 - CDBU0340) SMD Schottky Barrier Diode
Datasheet	CDBU0320_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: CDBU0330, CDBU0320. Please refer to the document for exact specifications by model.

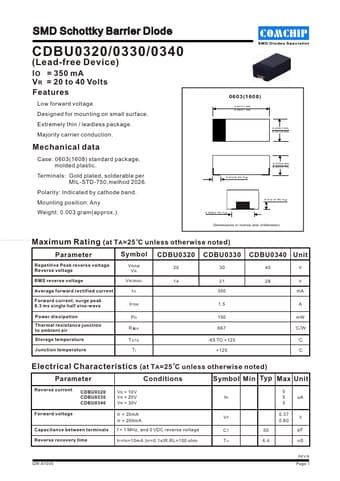

Additional preview pages of the CDBU0330 datasheet.

Low forward voltage. Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.039(1.00) 0.031(0.80) 0603(1608) 0.071(1.80) 0.063(1.60) Mechanical data Case: 0603(1608) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Polarity: Indicated by cathode band. Mounting position: Any Weight: 0.003 gram(approx. ). 0.028(0.70) Typ. 0.012 (0.30) Typ. 0.014(0.35) Typ. 0.033(0.85) 0.027(0.70) Dimensions in inc.
