CZRB3280 - Surface Mount Zener Diodes

Product Overview

Comchip Technology

Part number	CZRB3280
Manufacturer	Comchip Technology
File Size	66.42 KB
Description	Surface Mount Zener Diodes
Datasheet	CZRB3280 Datasheet

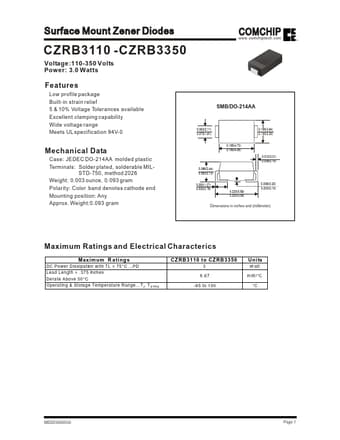

Additional preview pages of the CZRB3280 datasheet.

Low profile package Built-in strain relief 5 & 10% Voltage Tolerances available Excellent clamping capability Wide voltage range Meets UL specification 94V-0 SMB/DO-214AA 0.083(2.11) 0.075(1.91) 0.185(4.70) 0.160(4.06) 0.155(3.94) 0.130(3.30) Mechanical Data Case: JEDEC DO-214AA molded plastic Terminals: Solder plated, solderable MILSTD-750, method 2026 Weight: 0.003 ounce, 0.093 gram Polarity: Color band denotes cathode end Mounting position: Any Approx. Weight:0.093 gram 0.096(2.44) 0.083(2.
