CZRB5338B-HF - SMD Zener Diode

Product Overview

Comchip Technology

Part number	CZRB5338B-HF
Manufacturer	Comchip Technology
File Size	110.29 KB
Description	SMD Zener Diode
Datasheet	CZRB5338B-HF Datasheet

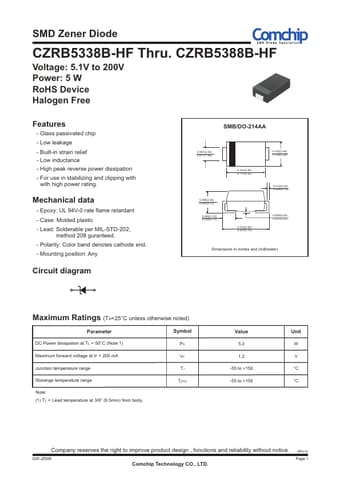

Additional preview pages of the CZRB5338B-HF datasheet.

- Glass passivated chip - Low leakage - Built-in strain relief - Low inductance - High peak reverse power dissipation - For use in stabilizing and clipping with with high power rating. Mechanical data - Epoxy: UL 94V-0 rate flame retardant - Case: Molded plastic - Lead: Solderable per MIL-STD-202, method 208 guranteed. - Polarity: Color band denotes cathode end. - Mounting position: Any Circuit diagram SMB/DO-214AA 0.087(2.20) 0.077(1.96) 0.096(2.44) 0.083(2.13) 0.060(1.52) 0.030(0.75) 0.191(.
