CZRF52C3, CZRF52C2 - (CZRF52C2 - CZRF52C39) SMD Zener Diode

Name: CZRF52C3
SKU: CZRF52C3-594304

Comchip Technology

The CZRF52C3 by Comchip Technology is a (CZRF52C2 - CZRF52C39) SMD Zener Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CZRF52C3, CZRF52C2
Manufacturer	Comchip Technology
File Size	270.74 KB
Description	(CZRF52C2 - CZRF52C39) SMD Zener Diode
Datasheet	CZRF52C2_ComchipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: CZRF52C3, CZRF52C2. Please refer to the document for exact specifications by model.

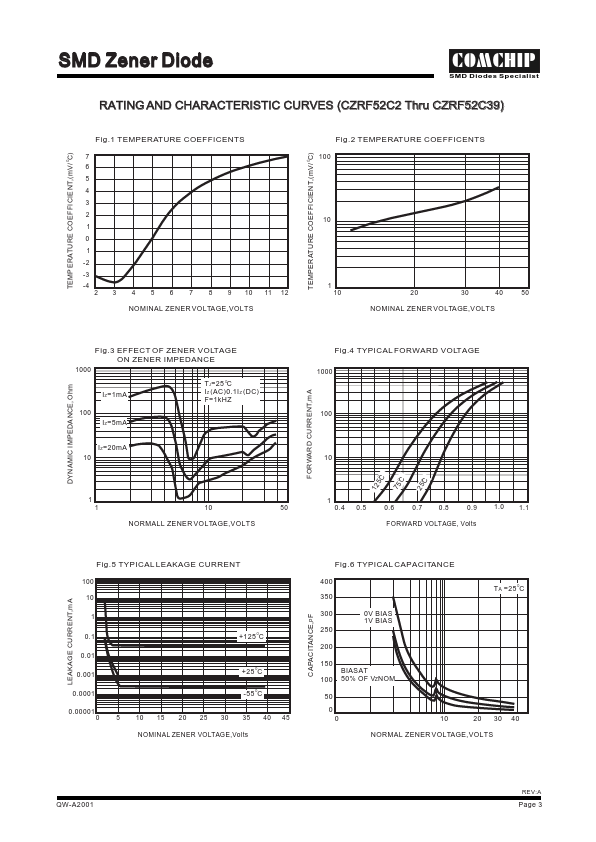

Additional preview pages of the CZRF52C3 datasheet.

200mW Power Dissipation. High Voltages from 2 ~ 39 V. Designed for mounting on small surface. Extremely thin/leadless package. Pb free product. 0.051(1.30) 0.043(1.10) 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical data 0.035(0.90) Case: 1005(2512)Standard package Molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Polarity: Indicated by cathode band. Weight: 0.006 gram(approx. ). 0.027(0.70) 0.020(0.50) Typ. 0.012 (0.30) Typ. 0.020(0.50) Typ. Dimensions in inch.
