CZRL5226B - Surface Mount Zener Diodes

Comchip Technology

Datasheet Details

Part number	CZRL5226B
Manufacturer	Comchip Technology
File Size	56.26 KB
Description	Surface Mount Zener Diodes
Datasheet	CZRL5226B_ComchipTechnology.pdf

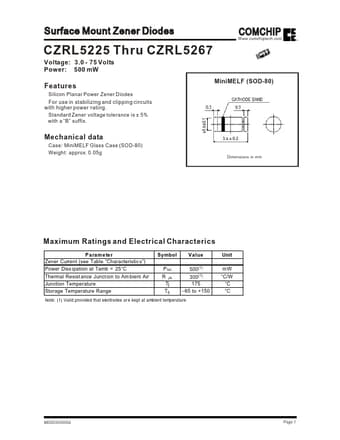

Silicon Planar Power Zener Diodes MiniMELF (SOD-80) For use in stabilizing and clipping circuits with higher power rating. Standard Zener voltage tolerance is ± 5% with a “B” suffix. Mechanical data Case: MiniMELF Glass Case (SOD-80) Weight: approx. 0.05g Dimensions in mm Maximum Ratings and Electrical Characterics P a ra m e te r Zener Current (see Table “Characteristic s”) Power Diss ipation at Tamb = 25°C Thermal Resist ance Junct ion to Am bient Air Junction Temperature Storage Temperatu.
