DF040M-G - Single-Phase Bridge Rectifiers

Product Overview

Comchip Technology

Part number	DF040M-G
Manufacturer	Comchip Technology
File Size	65.26 KB
Description	Single-Phase Bridge Rectifiers
Datasheet	DF040M-G Datasheet
Note	This datasheet PDF includes multiple part numbers: DF040M-G, DF005M-G. Please refer to the document for exact specifications by model.

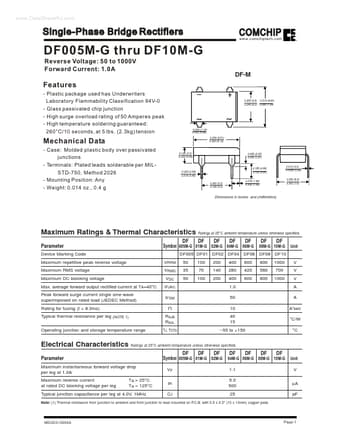

Additional preview pages of the DF040M-G datasheet.

- Plastic package used has Underwriters Laboratory Flammability Classification 94V-0 - Glass passivated chip junction - High surge overload rating of 50 Amperes peak - High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension 0.255 (6.5) 0.315 (8.00) 0.245 (6.2) 0.285 (7.24) 0.045 (1.14) 0.035 (0.89) 0.335 (8.51) 0.320 (8.12) Mechanical Data - Case: Molded plastic body over passivated junctions - Terminals: Plated leads solderable per MILSTD-750, Method 2026 - Mounting.
