GBJ2502-G - Glass Passivated SINGLE PHASE BRIDGE Rectifier

Product Overview

Comchip Technology

Part number	GBJ2502-G
Manufacturer	Comchip Technology
File Size	68.16 KB
Description	Glass Passivated SINGLE PHASE BRIDGE Rectifier
Datasheet	GBJ2502-G Datasheet

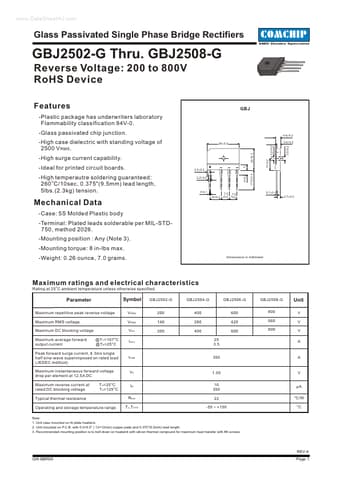

Additional preview pages of the GBJ2502-G datasheet.

-Plastic package has underwriters laboratory Flammability classification 94V-0. -Glass passivated chip junction. 3.2 ±0.2 GBJ 4.6 ± 0.2 30 ± 0.3 3.6± 0.2 3.5 ±0.2 -High case dielectric with standing voltage of 2500 V RMS . -High surge current capability. -Ideal for printed circuit boards. -High temperautre soldering guaranteed: 260 OC/10sec, 0.375"(9.5mm) lead length, 5lbs. (2.3kg) tension. 2.5 ± 0.2 2.2± 0.2 20 ± 0.3 + 1± 0.1 17.5 ± 0.5 4 ±0.2 7.5 7.5 10 ± 0.2 ± 0.2 ± 0.2 11± 0.2 5 0.
