KBU804G-G - Glass Passivated Bridge Rectifier

Product Overview

Comchip Technology

📥 Download Datasheet

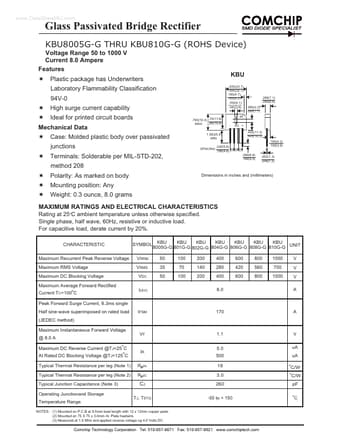

KBU804G-G Glass Passivated Bridge Rectifier by Comchip Technology - Datasheet Preview — Datasheet preview – KBU804G-G

Datasheet Details

Part number	KBU804G-G
Manufacturer	Comchip Technology
File Size	85.26 KB
Description	Glass Passivated Bridge Rectifier
Datasheet	KBU804G-G Datasheet
Note	This datasheet PDF includes multiple part numbers: KBU804G-G, KBU8005G-G. Please refer to the document for exact specifications by model.
Additional preview pages of the KBU804G-G datasheet.

Product details

Features

KBU8005G-G THRU KBU810G-G (ROHS Device) Plastic package has Underwriters Laboratory Flammability Classification 94V-0 High surge current capability Ideal for printed circuit boards Mechanical Data Case: Molded plastic body over passivated junctions Terminals: Solderable per MIL-STD-202, method 208 Polarity: As marked on body Mounting position: Any Weight: 0.3 ounce, 8.0 grams.
