MMBT2907 - PNP Transistor

Product Overview

Comchip Technology

📥 Download Datasheet

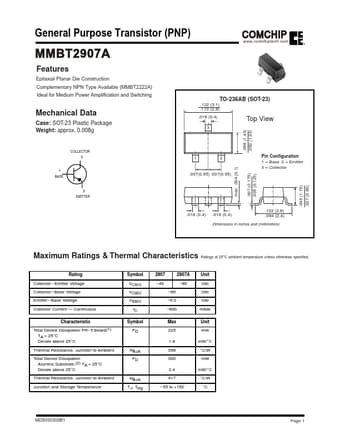

MMBT2907 PNP Transistor by Comchip Technology - Datasheet Preview — Datasheet preview – MMBT2907

Datasheet Details

Part number	MMBT2907
Manufacturer	Comchip Technology
File Size	139.46 KB
Description	PNP Transistor
Datasheet	MMBT2907 Datasheet
Additional preview pages of the MMBT2907 datasheet.

Product details

Features

Epitaxial Planar Die Construction Complementary NPN Type Available (MMBT2222A) Ideal for Medium Power Amplification and Switching TO-236AB (SOT-23) .122 (3.1) .110 (2.8) .016 (0.4) 3 .056 (1.43) .052 (1.33) 1 2 max. .004 (0.1) Pin Configuration 1 = Base 2 = Emitter 3 = Collector Mechanical Data Case: SOT-23 Plastic Package Weight: approx. 0.008g Top View.
